Festool Hole drilling set LR 32 Set
Holes in series.
Strengths and benefits
- With the LR 32 system – comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system – precise rows of holes spaced 32 mm apart can be drilled with the Festool router
- The LR 32 guide rail is aligned quickly and parallel to the two side stops, which are positioned by means of an adjustable stop at the workpiece and guide rail
- The guide rail is precisely positioned with 9.5, 16 or 32 mm edge clearance over the stopper in the longitudinal direction
- Centring mandrel for perfect centring of the router on the guide plate
- Spring-loaded positioning rocker for effective operation when drilling the hole series
- Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate
Main areas of use
- Preparing holes series with 32 mm spacing
- Drilling of fittings like cupboard hinges
Adapted for- for routers OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 hole drilling system
- for use with hole line guide rails
Items included

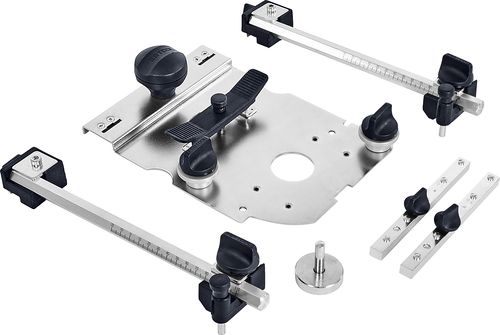

guide plate, centring mandrel, 2 parallel side fences with adjustable stop, 2 x Longitudinal stop
Warranty all-inclusive--> Find out more
Delivery time:
7 working days
